PowerHD

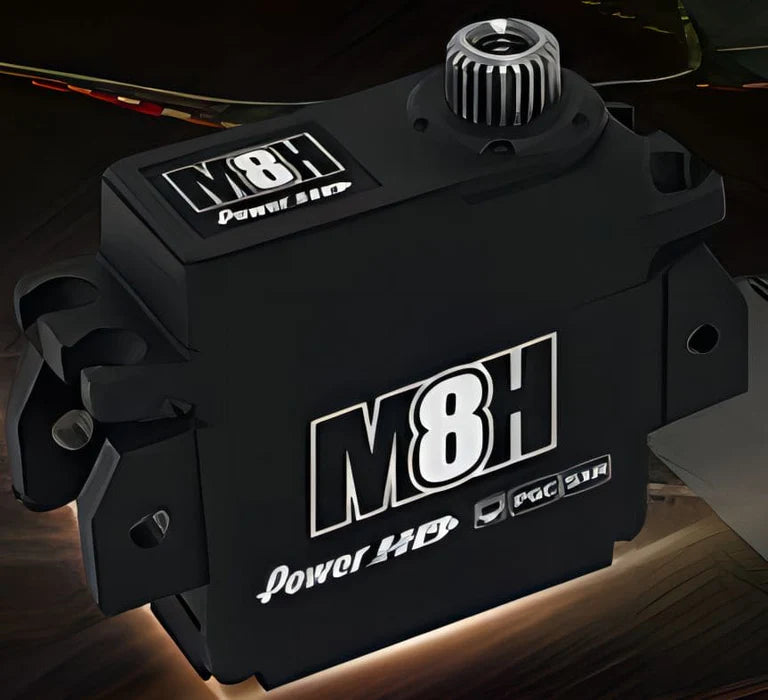

PHDM8H Power HD M8H Low Profile HV Coreless Servo 8.5KG 0.065 Sec@8.4V
PHDM8H Power HD M8H Low Profile HV Coreless Servo 8.5KG 0.065 Sec@8.4V
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
/
per
Couldn't load pickup availability
| Specifications | |
|---|---|
| Torque (4.8V): | 4.5 kg-cm (62.5 oz/in) |
| Torque (6.0V): | 6.3 kg-cm (87.5 oz/in) |
| Torque (7.4V): | 7.5 kg-cm (104.2 oz/in) |
| Torque (8.4V): | 8.5 kg-cm (118.0 oz/in) |
| Speed: | 0.11 sec (4.8V) 0.085 sec (6.0V) 0.073 sec (7.4V) 0.065 sec (8.4V) |
| Operating Voltage: | 4.8 ~ 8.4 DC Volts |
| Spline: | 25T |
| Case Colour: | Black |
| Case Material: | Plastic |
| Weight: | 18.0g (0.63 oz) |
| Bearing Type: | Ball Bearing x 2 |
| Motor Type: | Coreless Motor |
| Operating Temperature: | -20°C ~ 60°C |
| Working frequency: | 1520 micro seconds / 333hz |
| Size: | 27.2x12.1x28.2mm (1.07x0.48x1.11") Low Profile |
