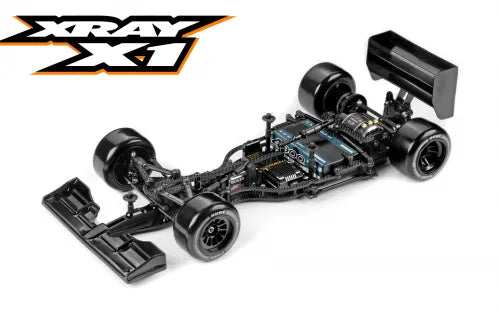

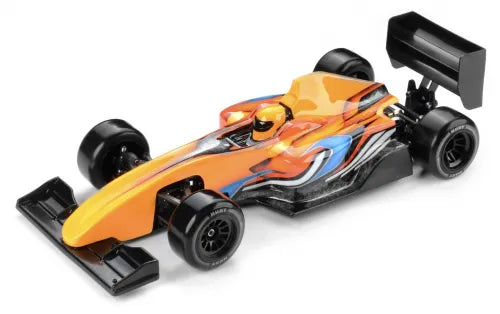

XRAY - X1 2025 1/10 Formula Kit

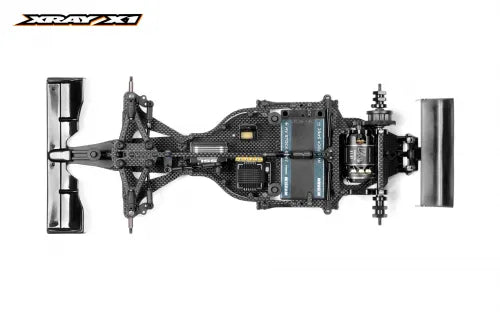

This is Xray X1 2025 Specs Luxury Formula 1 Competition EP 2WD Car Kit. All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance. The new 2024 chassis features a revised layout with new side braces for additional flex control, 2 new positions for servo mounting in forward/rearward alternatives related to the wheelbase setting, and a new hole for the alu top-deck mount & battery backstop. The super-narrow chassis creates maximum traction while still having excellent steering and cornering speed. The chassis’ torsional stability also helps eliminate the “scrub effect” in high-speed corners. Machined from premium high grade carbon fiber material.

Feature:

• All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance
• Narrower chassis shape reduces chassis drag during cornering
• Rear POD concept on top of chassis for less drag and improved tweak resistance
• Adjustable POD angle controlled by set screw at the rear of chassis for fine tuning
• Rear spring location improves forward traction with increased adjustability and lower CG
• Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster
• Universal rear spring nut holder works for both conical and linear springs
• 2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs
• Ultra-light, lower CG bulkheads are foundation of new POD system
• Left side bulkhead has mounting holes incorporated to mount optional motor cooling fan
• Lowered pivot holder and small diameter pivot ball offer lower roll center positions and greater adjustment range
• Carbon Fiber top plate for center shock and side damper mountings
• New rear carbon side spring brace aligns with new POD geometry
• Composite Snap Lock™ bushings press into carbon fiber parts for secure and reliable hardware installation
• All-new spring-free center shock absorber with 1-hole piston provides exceptional bump handling, low maintenance, and helps lower CG.
• Side braces with a narrower design save weight and leave more space for electronics and also allows better body fitment
• Narrower side brace mounting holders use M2.5 screws for weight savings
• Aluminum side link holders with 2-pin design for more rigidity and improved tweak resistance
• 2-pin carbon fiber side link plates integrate with aluminum holders for reliable alignment and offer 3 side link front pivot mounting positions for maximum adjustability
• New wing mounting system which saves weight and provides cleaner design and improves the durability and track width adjustment possibilities
• New adjustable wing angle for greater adjustment possibilities
• New redesigned lower arms with more material around the holes for improved durability in serious crashes
• New battery mounting system works with rear brace and front backstop for convenient installation
• Two body post mounting position options for different battery packs allows for different configurations
• Aluminum side spring retainers for more precise and consistent side spring mounting
• Most commonly used soft front springs included in kit for best all-around starting set-up

Required:

• Radio system (transmitter and receiver)
• Steering servo
• Motor
• Pinion gear
• Battery pack
• ESC
• Charger
• Bodyshell
• Wheels, tires, inserts
